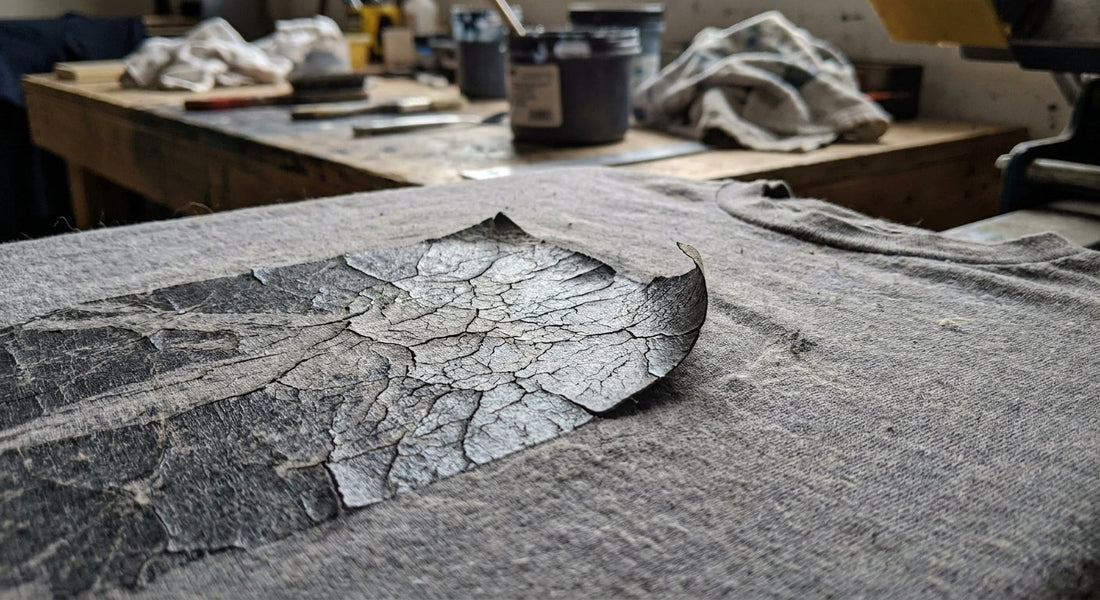

Why DTF Prints Crack, Peel, or Fade, and How to Make Them Last

A DTF print that cracks or peels in the wash usually entered the washer with a weak bond already. Washing exposes the pressing fault, but rarely creates it. You will learn to match each failure pattern to its cause, correct the press, and give customers care instructions that protect the finished garment.

To stop DTF prints from cracking or peeling, pre-press the garment to remove moisture and press DTFGO film at 280–300°F (138–149°C) with medium pressure, about 6 KG. For hot peel, press 6–10 seconds and peel immediately corner to corner; for cold peel, cool completely first. Finish with a short covered post-press.

The wash reveals the problem, but the press usually caused it

A transfer can look clean when it leaves the press even though the adhesive has only gripped the surface of the shirt. Once washing bends the fabric, wets the fibres, and moves the garment, that shallow bond begins separating. The visible cracking or peeling happens later, but the weak interface was created during pressing.

Pressure is the most commonly wrong variable, more often than temperature. Operators naturally watch the temperature display because it provides a clear number. Pressure is harder to judge by eye, and an under-pressured transfer may still look perfect. The adhesive can soften without being driven deeply enough into the garment’s weave to form a lasting mechanical bond.

Adding more heat is not the automatic solution. If the press is already within the correct range, raising the temperature may scorch the garment, create a shiny platen mark, or encourage dye migration in polyester. Correct the contact and pressure first. Use the full DTF heat press settings guide when you need a broader settings and calibration discussion.

Moisture is another hidden pressing problem, particularly with cotton. Cotton can hold moisture without feeling damp. When heated, that moisture consumes energy and turns to vapour at the adhesive interface. The result can be uneven contact and incomplete entry of the adhesive into the fibres. A pre-press drives out that moisture before the transfer is applied.

DTF failure symptoms, pressing causes, and fixes

Start diagnosis with the location and timing of the failure. A problem across the entire design points toward the main settings or garment preparation. A problem confined to one edge usually points toward uneven contact, platen temperature, or pressure distribution.

Symptom	Likely pressing cause	Fix
Fine cracks across the whole print after a few washes	Pressure was too light, the garment retained moisture, or the adhesive did not receive even heat across the design.	Pre-press the garment, confirm medium pressure at about 6 KG, center the design, and check that the full platen heats evenly.
Edges lift before the middle	An edge sat near a cooler platen area, or a collar, seam, or other thickness prevented flat pressure.	Move the design toward the platen center, keep raised garment features outside the pressing area, and inspect heat and pressure distribution.
The print looks unexpectedly dull or matte immediately	The transfer was under-pressed, contact was uneven, or the carrier was peeled at the wrong stage for that film.	Verify temperature and medium pressure, follow the correct peel method, then apply the short covered post-press.
Fibres of the shirt show through the print	Excessive pressure or repeated pressing forced the transfer too deeply into the garment weave.	Return to medium pressure, about 6 KG, and avoid unnecessary additional press cycles beyond the finishing post-press.
The design lifts off with the carrier film during peeling	The adhesive did not bond, or a cold-peel film was peeled before cooling completely.	Confirm heat and pressure, identify the film’s peel type, and follow the correct hot- or cold-peel sequence.
The print feels stiff or plasticky	Too much heat, excessive pressure, or repeated exposure compressed and overworked the transfer.	Stay within 280–300°F, use medium pressure, and limit finishing to a short post-press under a cover sheet.
Colour looks faded after one wash	Micro-lifting from an incomplete bond makes the surface appear faded, or excessive heat caused dye migration in a synthetic garment.	Check pressure and moisture preparation. For polyester, stay at the low end of the range and test the garment before production.
A shiny rectangle or scorch mark surrounds the print	The garment received too much heat, pressure, or unnecessary exposure from the platen.	For heat-sensitive fabric, use the low end of 280–300°F, test first, keep the cover sheet clean, and avoid excessive pressure.

Why one edge can fail while the rest stays attached

Platen wear and uneven heat often make the corners cooler than the center. A transfer placed off-center can therefore be fully bonded on one side and under-bonded on the other. When only that side lifts, it is easy to blame the transfer even though its adhesive received different conditions across the same design.

Map the usable pressing area rather than assuming every spot matches the display. Also look at the lower platen. Seams, pockets, zippers, collars, and garment folds can hold one part of the design away from the heated surface. A level setup matters as much as the temperature selected on the control panel.

This is especially important when pressing many cut designs from a DTF gang sheet. Moving each transfer to whatever open corner is convenient can produce inconsistent results. Keep every design within the verified pressing area, even when the transfer itself is small.

Press it so it lasts

1. Inspect the garment and pressing area. Confirm that the fabric is clean, dry, and free from folds. Arrange the garment so seams, collars, pockets, and other raised areas do not stop the print area from lying flat.

2. Pre-press the garment. Use the press to drive moisture from the fabric and flatten the weave before positioning the transfer. This matters with cotton because trapped moisture absorbs heat and creates vapour where the adhesive needs uninterrupted contact with the fibres.

3. Position the transfer near the platen center. Avoid placing one side of a design over an unverified corner. Make sure the carrier lies flat, with no wrinkles or debris beneath it. Consistent placement makes results easier to compare across garments.

4. Set the press for the actual film and garment. DTFGO film runs at 280–300°F, or 138–149°C. Polyester and heat-sensitive synthetics should stay at the low end and be tested because excessive heat can scorch the fabric or cause dye migration.

5. Apply real medium pressure. For DTFGO film, that is about 6 KG. Do not assume a closed press automatically creates enough pressure. The adhesive must be pushed into the weave, not merely warmed while resting on top of it.

6. Follow the correct peel method. For hot peel, press for 6–10 seconds, then peel immediately from one corner across the design. For cold peel, use the same temperature but allow the transfer to cool completely before removing the carrier. Do not combine the two methods.

7. Read the carrier and print as you peel. Stop if the design begins following the film instead of staying on the shirt. Recheck peel timing, pressure, garment moisture, and platen contact before continuing with the rest of the production run.

8. Finish with a short covered post-press. Place a clean cover sheet over the exposed print and apply a short finishing press. This improves the final surface and helps settle the transfer into the fabric without subjecting it to unnecessary repeated press cycles.

Keep a simple record of garment type, transfer batch, position on the platen, settings, and result. Whether you order individual transfers by size or cut multiple designs from one sheet, repeatable placement and pressure make troubleshooting far faster.

Garment care instructions to give your customer

Correct pressing creates the bond, but care determines how much avoidable stress that bond receives. Give the following instructions with the garment instead of assuming the customer knows how decorated apparel should be washed.

Care instructions cannot rescue a transfer that was under-pressed. If a normally washed print begins lifting quickly, inspect the bond before blaming the customer. Widespread cracking, clean edge separation, or failure concentrated on one side can all point back to the press.

Factors outside the press operator’s control

Garment quality and fabric blend affect the surface receiving the adhesive. Different weaves, finishes, and fibre combinations do not present the same contact surface, even when the shirts look similar. Test an unfamiliar garment before committing the full run, particularly when switching suppliers or blends.

Water hardness can change detergent performance and leave different levels of residue on fabric. Commercial and industrial laundering is also far harsher than domestic washing, with stronger chemistry, greater mechanical action, and more aggressive drying conditions. A garment intended for that environment should be tested under its real laundering process.

Frequently asked questions

Why does my DTF print crack after only a few washes?

Fine cracking across the entire design usually means the adhesive never formed a deep, even bond. Check for retained garment moisture, light pressure, or uneven platen heat. Pre-press the garment, use medium pressure at about 6 KG, and place the transfer within the press’s verified heating area.

Why is my DTF transfer peeling only around the edges?

Edge-only peeling usually indicates uneven contact rather than a uniformly defective transfer. The design may have crossed a cooler platen corner, or a seam or collar may have reduced pressure nearby. Center the transfer, level the print area, and check the full platen for uneven heat and wear.

What temperature and pressure should I use for DTFGO transfers?

Press DTFGO film at 280–300°F, which is 138–149°C, with medium pressure of about 6 KG. For polyester and heat-sensitive synthetics, remain at the low end and test first. Do not copy another supplier’s settings automatically because the correct range depends on the film actually being pressed.

Should I hot peel or cold peel a DTF transfer?

Use the peel method specified for the film. DTFGO hot-peel film is pressed for 6–10 seconds and peeled immediately from one corner across. Cold-peel film uses the same temperature but must cool completely before peeling. Removing a cold-peel carrier early can pull the design away from the garment.

Can I re-press a DTF print that has started peeling?

A clean, newly pressed edge that has not bonded may sometimes respond to another covered press, but first correct the original cause. Once a garment has been washed, contamination, stretching, and damaged adhesive make the result less predictable. Re-pressing is not a dependable substitute for proper initial pressure and preparation.

How long should I wait before washing a DTF shirt?

Wait before the first wash so the adhesive has time to set fully, and follow the instructions supplied with the transfer rather than assuming every film uses the same waiting period. After that, wash cold and inside out with mild detergent, then tumble low or hang dry.

Make the press prove the bond

A wash test should confirm a controlled pressing process, not serve as the first sign that pressure, moisture, or platen contact was wrong. Control those variables, use the correct peel sequence, and treat a one-sided failure as evidence about the press before treating it as evidence about the transfer.

For ready-to-press transfers and local pickup, visit the DTFGO Anaheim shop or prepare your next production sheet with consistent press placement in mind.
